RCC Hume Pipe Catalogue

RCC hume pipes, side cut hume pipes and sosa drains.

Choose RCC concrete pipes by diameter, class, thickness, weight and code number. Suitable for drainage, water-flow, culvert and civil infrastructure applications.

IS 458:2021

RCC Hume Pipe

Available in different diameter ranges, pipe classes, thickness and weight options.

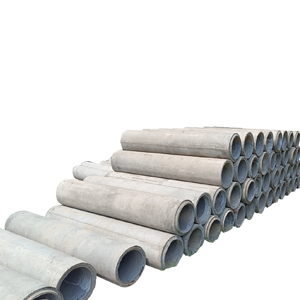

Code No. 1

IS 458:2021 Class NP-2

RCC Hume Pipe

Diameter Range150 mm to 1200 mm
ClassNP-2
Thickness25 mm to 70 mm
Weight69 kg to 1780 kg

150 200 225 250 300 400 450 600 750 900 1000 1200

Enquiry Now

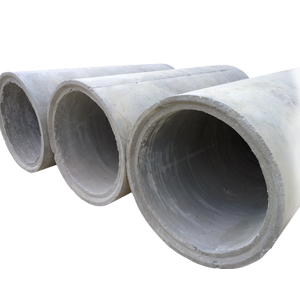

Code No. 3

IS 458:2021 Class NP-3 & NP-4

RCC Hume Pipe

Diameter Range150 mm to 1500 mm
ClassNP-3 & NP-4
Thickness25 mm to 100 mm
Weight70 kg to 1950 kg

150 200 225 250 300 400 450 600 900

Enquiry Now

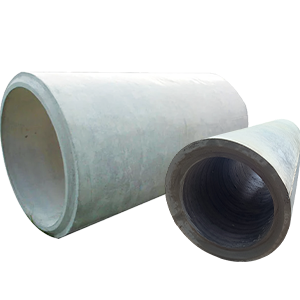

Code No. 5

IS 458:2021 Class NP-3 & NP-4

RCC Hume Pipe

Diameter Range150 mm to 1200 mm
ClassNP-3 & NP-4
Thickness25 mm to 120 mm
Weight75 kg to 3145 kg

150 200 225 250 300 350 400 450 500 600 700 800 900 1000 1200

Enquiry Now

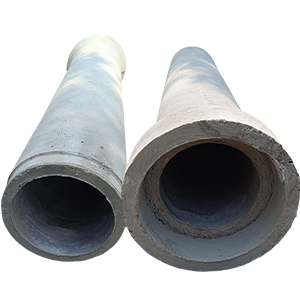

Code No. 6

Large Diameter Heavy Pipe

RCC Hume Pipe

Diameter Range1000 mm to 2400 mm
Available DIA1000 / 1200 mm
Thickness115 mm / 120 mm
Weight2518 kg / 3111 kg

1000 1200

Enquiry Now

Special Products

Side Cut Hume Pipe & Sosa Drain

Special concrete drainage products for site-specific drainage and civil project needs.

Side Cut

Drainage Product Special Pipe

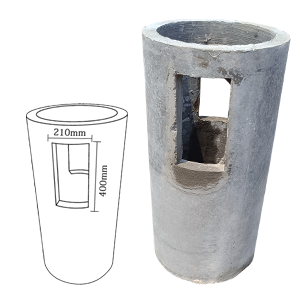

Side Cut Hume Pipe

Total Height1125 mm
Inner DIA500 mm
Thickness65 mm
Weight400 kg

500 DIA 1125 Height

Enquiry Now

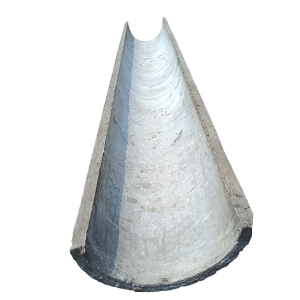

Sosa Drain

Drainage Product Concrete Drain

Sosa Drain

Available DIA250 / 300 / 600 mm
ClassNP-3 & NP-4
Thickness25 / 25 / 85 mm
UseDrainage Work

250 300 600

Enquiry Now
